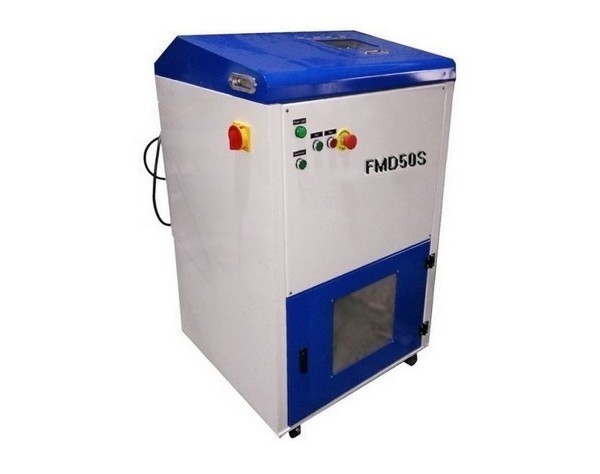

FMD50S MEDICAL WASTE SHREDDER

Safety protection

Electric Leakage protection,

Over voltage and over current protection;

Interface safety voltage;

Emergency stop function;

With earthing conductor;

High torque,low speed technology

Efficiently process bulk fed,,though to shred materials. Less downtime, noise and dust emission than high speed shredders.

Professional Cutter design

We will help to design the proper number and the length of hooks for cutters according to various kinds of materials so that to maximize throughput of the requirement shred size

With UV disinfection

With  the UV and Ozone disinfection lamp and can kill the virus where the UV lamp light reach.

Automatic shaft Reverse function

When over feeding, Automatic shaft Reverse function will protecting against damage .

Super low noise

Its working noise is about 60-70dBa, so it is more suitable for hospital use.

Product size

L980XW780xH1280mm, convenient for put the waste and operation.

Crushing capacity

80-100kg/hour

Power supply

380V,50Hz, 3 phase power supply

Internal protection

overload protection , leakage protection

Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

2200VA

Material of shell

Mild steel powder coated

Material of knife

SKDII alloy steel, strong abrasion resistance and high strength,15mm thickness

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

2pcs of Waste collector

Number of knife

14pcs of rotating knife, 14pcs of fixed knife

Motor

Taiwan famous brand Quiet and low speed motor. With speed reducer

Low noise

60 - 70 dB (A)

Rpm

30r/min

Operation Panel

“START"    “STOP"  “EMERGENCY STOP"   “POWER LIGHT"   “POWER SWITCH".“DISINFECTION" for UV and Ozone disinfection.

Weight

400KG
