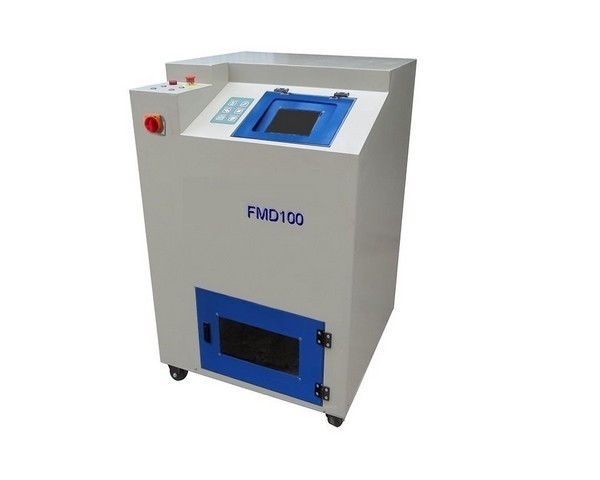

FMD100 MEDICAL WASTE SHREDDER

Safety protection

Electric Leakage protection,

Over voltage and over current protection;

Interface safety voltage;

Emergency stop function;

With earthing conductor;

High torque,low speed technology

Efficiently process bulk fed,,though to shred materials. Less downtime, noise and dust emission than high speed shredders.

Professional Cutter design

We will help to design the proper number and the length of hooks for cutters according to various kinds of materials so that to maximize throughput of the requirement shred size

With UV disinfection

With  the UV and Ozone disinfection lamp and can kill the virus where the UV lamp light reach.

Automatic shaft Reverse function

When over feeding, Automatic shaft Reverse function will protecting against damage .

Super low noise

Its working noise is about 60-70dBa, so it is more suitable for hospital use.

Destroying method

Electric Double shaft cutting

Product size

860*860*1350mm

Crushing capacity

100-150KG/hour

Power supply

3 phase power supply

Internal protection

overload protection , leakage protection； Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

3000VA

Material of shell

Mild steel powder coated

Temperature

in operation:-5°C~+50°C  stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

2pc of Waste collector

Number of knife

18 pcs of rotating blade,18pcs of fixed blade, blade is made of

special alloy steel

Material of shredder body

Made of mild steel powder coated

Motor

Quiet and low speed motor.

Low noise

60 - 70 dB (A)

Rpm

30r/min

Operation Panel

“START"    “STOP"  “EMERGENCY STOP"   “POWER LIGHT"   “POWER SWITCH". “DISINFECTION" for UV and Ozone disinfection. Automatic shaft reverse function when blade is stuck.
