Medical Waste incinerator

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1set

Contact Now

Detailed Product Description

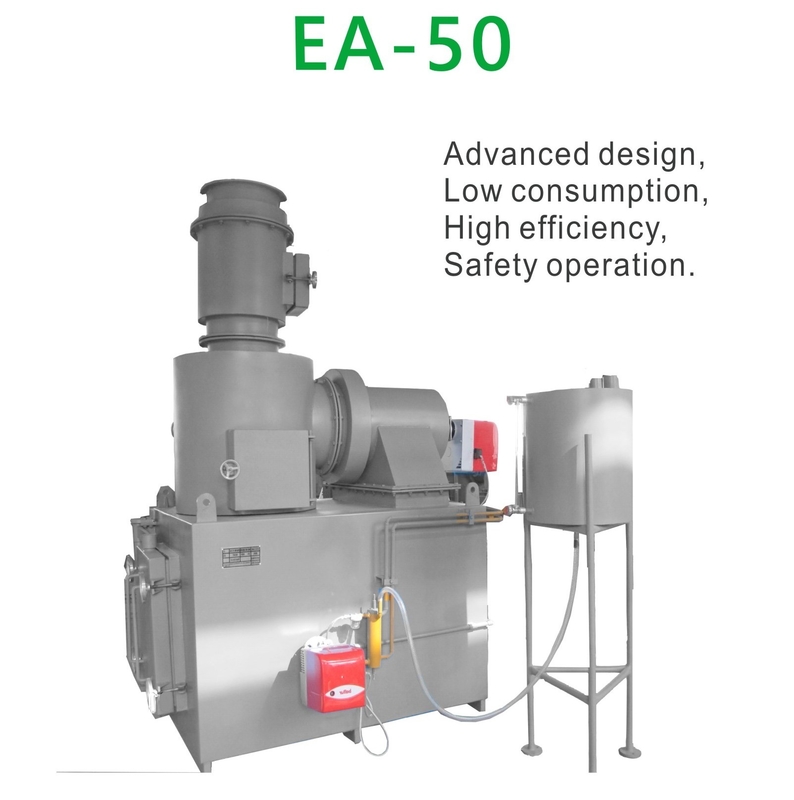

EA-50 Medical waste incinerator

EA-50 incinerator are designed to burn many types of medical waste including type IV pathological waste and infectious and contaminated “Red bag" , nozzle, plastic items , plastic caps, cellulose acetate membrane electrophoresis, liquid, toilet boxes, bacteria culture, drug sensitivity reaction plate, syphilis test board, other experimental specimens, operation resection stump, organ and so on

Main componenets

Functionhigh temperature incineration for complete destruction of hospital waste and lab waste,imputed human organsWaste burning capacity50 kg per hourincinerator designcontrolled air typefinish/painthigh quality heat resistant, high grade epoxy paint coatingNo. of burners2pcstemp controllersthermocouples: 02pcsloading systemmanual , batch typefuel:Nutural gas or diesel unit warm-up time20 minuteresidual time of flue gases02secondsPrimary chamberVolume for Primary chamber /Secondary Chamber /mix burning chamber500L+ 300L+ 40L Waste burning capacity 50 KG per hour(daily incineration 8-12hours)temperature of chamberMore than 850℃blower fan In primary chamber0.55KW Primary chamber constructionsSteel sheet 6mm, heat resistant paint 3cm, isolation bricks 12cmnon-cracking refractory bricks: 15cm Surface temeraturer after few hours useBelow 55℃Secondary Chamber (Post Combustion) temperature of chamber900-1100℃chamber constructions200mm of high thermal insulating materials, and 50mm insulator.BurnersNos.2 pcs of imported famous brand(baltur) fully automatic burners installed, one each at each chamberOperateOperatable by single push buttons gas flow protection micro sensingstructureboth burners having blower, motor overload protections, electric spark ignition and flame sensing rodcontrosafety: Emergency shut off control systemsSmoke purify chamberDry MethodDry, with filter brickChimneyplate moterial/thickness made of S.Sheightheight 9 metersfittingfitted with shilling wiressampling port be fitted with sampling port for the collection and measuring of gasElectric control panelDigital display of temperature and set timing parameters.having all electrical/temp control switches and gausesmains push on/off /emergency stopburners/blowers push control systemspower electric voltage380/400V , 50/60Hzelectric phase3AccessoriesAshes Harrow1pc

Main Features:

Fast ,complete ,efficient waste disposal

Ø Primary chamber:0.5cubic meters

Ø Threechambers and two burner, insulated and refractory lined secondary chamber with exit temperature

of up to 1000-1300℃with 2 secondsretention time.

Ø Easy and safe operation:

Ø With temperaturemonitoring function

Ø insulated and refractory lined chamber, and with thickness of refractory more than150mm

Ø Low temperature outside service when incineration

Ø Electric ignition and shut off. With burner slide and the burner can be take out after work finished so that to

avoid the damage to burner.

Ø Automatic controlthe working of two burners, the water pump and the fan.

Ø Automatic display ofvoltage and current,temperature in first chamber and second chamber

Ø With secondary chamber and burner, provides a 2 second and gas retention time.

Ø Virtually smoke & smell free

Ø High temperature, refractory lining giving excellent heat retention

Ø Easy installation and maintenance–installation

Ø One year warranty and full access to technical backup and support via telephone.

Ø Worldwide coverage.
