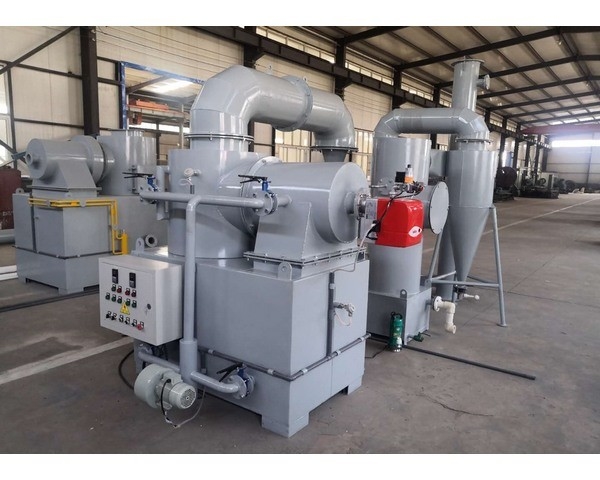

Bio medical waste incinerator with gas purify system Model: EA-50PLUS

Product Details:

Contact Now

Detailed Product Description

Product Name

Bio medical waste incinerator with gas purify system
Model: EA-50PLUS

Technical Specifications:

Function	high temperature incineration for complete destruction of hospital waste and lab waste,imputed human organs
Type	dual chamber,semi-automatic type and tertiray chamber with flue gas scrubber
Waste burning capacity	50 kg per hour
incinerator design	controlled air type
finish/paint	high quality heat resistant, high grade epoxy paint coating
No. of burners	2pcs
temp controllers	thermocouples: 02pcs
loading system	manual , batch type
fuel:	Nutural gas or diesel
unit warm-up time	20 minute
residual time of flue gases	02seconds
Primary chamber
Volume for Primary chamber /Secondary Chamber /mix burning chamber	500L+ 300L+ 40L
Waste burning capacity	50 KG per hour(daily incineration 8-12hours)
temperature of chamber	More than 850℃
blower fan In primary chamber	0.55KW
Primary chamber constructions	Steel sheet 6mm, heat resistant paint 3cm, isolation bricks 12cm non-cracking refractory bricks: 15cm
Surface temeraturer after few hours use	Below 55℃
Secondary Chamber (Post Combustion)
temperature of chamber	900-1100℃
chamber constructions	200mm of high thermal insulating materials, and 50mm insulator.
Burners
Nos.	2 pcs of imported famous brand(baltur) fully automatic burners installed, one each at each chamber
Operate	Operatable by single push buttons gas flow protection micro sensing
structure	both burners having blower, motor overload protections, electric spark ignition and flame sensing rod
contro	safety: Emergency shut off control systems
Venturi scrubber
wet ventury scrubber	water based wet ventury scrubber system for clean smoke emission
made	made of complete S/S
type	full cone type
Packed spray tower
mixed flue gas and liquid fully (air flow speed 0.5-1.0m/s, smoke outlet temperature below 100 degrees C, liquid spray density of 10m3/hm2).
Cyclone dust and steam seperator
Relying on centrifugal and tapered concentration, the moisture in the flue gas is separated, the water flow into the First sedimentation tank and second one and then re-circulating used
Water pool for waste sedimentation
3 stage of water pool	First sedimentation pool,
	Secondary sedimentation pool
	Final sedimentation pool, with 3-5％NaOH liquid and will be clean water which meet emission regulation , clean water can be drawn back to ventury scrubber by water pump for clean and cooling the waste gas , and can add the city water in it if need.
Chimney
plate moterial/thickness	made of S.S
height	height 9 meters
fitting	fitted with shilling wires
sampling port	be fitted with sampling port for the collection and measuring of gas
Electric control panel
Digital display of temperature and set timing parameters.
having all electrical/temp control switches and gauses
mains push on/off /emergency stop
burners/blowers push control systems
power electric voltage	380+ 10% , 50/60Hz
electric phase	3
Accessories
Ashes Harrow	1pc
