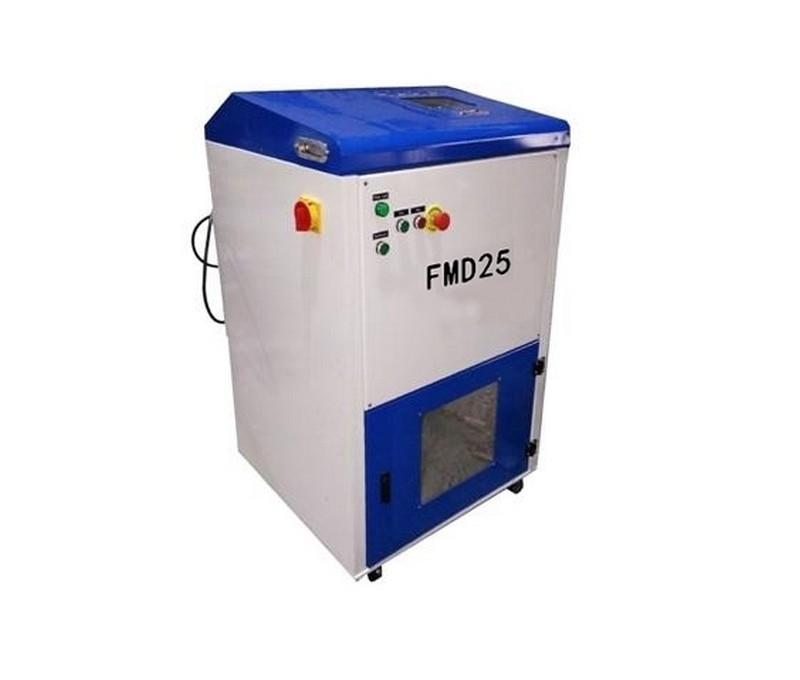

MEDICAL WASTE SHREDDER FMD25

Safety protection

Electric Leakage protection,

Over voltage and over current protection;

Interface safety voltage; Emergency stop function;

With earthing conductor;

High torque,low speed technology

Efficiently process bulk fed,,though to shred materials. Less downtime, noise and dust emission than high speed shredders.

Professional Cutter design

We will help to design the proper number and the length of hooks

for cutters according to various kinds of materials so that to maximize throughput of the requirement shred size

With UV disinfection

With the UV and Ozone disinfection lamp and can kill

the virus where the UV lamp

light reach.

Automatic Shaft Reverse function

When over feeding, Automatic shaft Reverse function will help to protect the shredding system against damage.

Super low noise

Its working noise is only about 60-70dBa, and it is more suitable

for hospital use and long use.

Product size

780*680*1280mm

Crushing capacity

25-30kg/hour

Power supply

110V/220V-240V,50/60Hz,

single phase power supply

Internal protection

overload protection, leakage protection

Thermal hypersensitivity protection,

Interface voltage

Safety low voltage on the operation panel.

Output power

1500VA

Material of shell

Mild steel powder coated

Temperature

in operation: -5°C~+50°C ; stored:-20°C~+55°C

Relative humidity

60%~80%

Waste collector

1pc of Waste collector

Number of knife

10pcs, made of special alloy imported from Sweden.

Motor with reducer

Quiet and low speed motor, made in Taiwan

Bearing

Chinese famous brand

Rpm

30r/min

Low noise

60 - 70 dB (A)

Ozone and UV disinfection

With the UV and Ozone disinfection lamp and can

kill the virus where the UV lamp light and Ozone reach.

Operation Panel

“START" “STOP" “EMERGENCY STOP"

“POWER LIGHT" “POWER SWITCH".

“DISINFECTION" for UV and Ozone disinfection.
